Window Coverings Guide
Sliding Panel Blinds for Patio Doors & Large Windows:
Everything You Need to Know
Sliding panel blinds for patio doors, large windows, and room dividers — everything you need to choose and install the right panel track shades. By ECO Glass Windows And Doors, official Maxxmar authorized dealer serving the GTA.
What Are Panel Track Blinds?
Panel track blinds are a window covering system built from wide fabric panels suspended from a horizontal track mounted at the ceiling or top of the window. Instead of raising and lowering like a roller shade or roman blind, the panels slide horizontally along the track — stacking behind each other to open, spreading across the window to close. The result is a clean, contemporary covering that moves the way large openings actually work.
Panel track shades were designed to solve a problem that most standard window coverings can’t address cleanly: very wide openings. A single roller shade wide enough to cover a 120″ patio door is unwieldy, heavy, and difficult to operate. A panel track system divides that same opening into three or four manageable fabric panels on a precision track, each one light to move and smooth in operation.
Maxxmar panel track blinds are 100% made in Canada, available in two track profiles and a broad fabric range, and backed by a Lifetime Limited Warranty. ECO Glass Windows And Doors supplies and installs the complete collection across the Greater Toronto Area — every panel custom-cut to your exact opening dimensions.

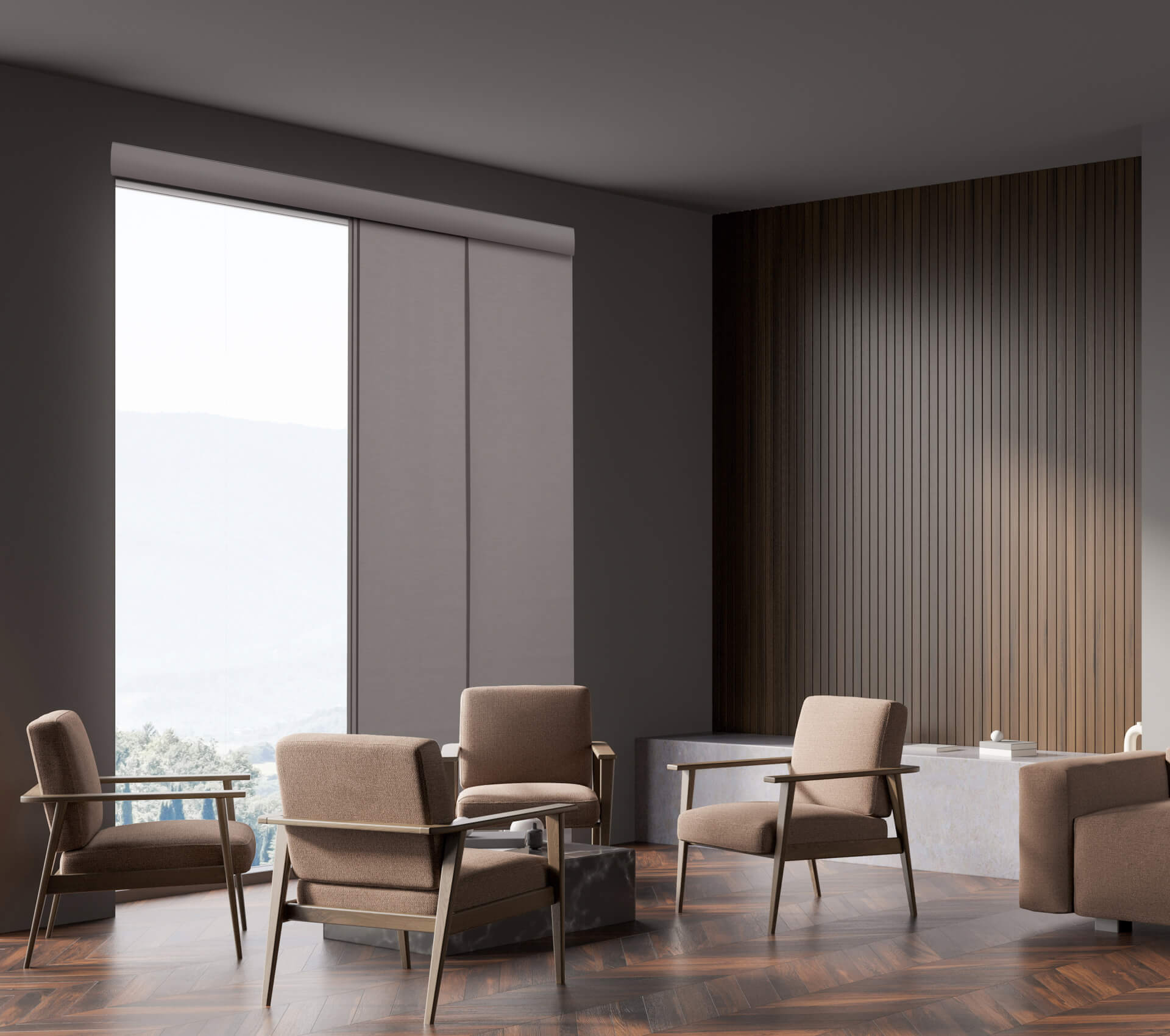

Compact Cassette — Minimal Profile
Panels Stacked Open
PVC Valance — Decorative Track
Maxxmar panel track blinds — two track profiles, 100% Made in Canada, Lifetime Limited Warranty.
How Panel Track Blinds Work
The track system is the core of a panel track installation. A precision-machined aluminum or PVC-capped track is mounted horizontally above the window or at ceiling height. Multiple channels run along the length of the track — one for each panel. Each panel has a carrier clip at the top that slides smoothly within its dedicated channel, allowing independent movement without interference between panels.
When the panels are closed, they span the full width of the opening in sequence, creating a continuous fabric face across the glass. When opened, the panels slide toward one or both ends of the track — stacking behind each other in a compact bundle. A panel track system specified for a left-stack will gather all panels to the left; a split-stack configuration sends panels to both ends, opening from the middle like curtains.
The panel width is determined by dividing the total opening width by the number of panels. For a standard 96″ patio door, four 24″ panels is a common configuration. For a 144″ wall of windows, six 24″ panels or five 28.8″ panels provides balanced coverage with an efficient stack. ECO Glass calculates the right panel count and width for every opening during the in-home measurement appointment.
Panel track systems can be configured to stack left, stack right, or split-stack from the centre. The right direction depends on the window or door configuration — for a sliding patio door that opens to the right, a left-stack panel track keeps the open panels clear of the door travel path. ECO Glass specifies the correct stack direction for every installation as part of the measurement process.
Panel Track Blinds vs. Vertical Blinds
Panel track shades and vertical panel blinds address the same problem — covering wide openings — but they do it differently, and the right choice depends on priorities around aesthetics, light control, and maintenance.
| Feature | Panel Track Blinds | Vertical Blinds |
|---|---|---|
| Panel/slat width | 12–24″ wide fabric panels | 3.5″ individual slats |
| Light control | On/off — panels open or closed | Adjustable — slats rotate to any angle |
| Aesthetic | Contemporary, clean fabric face | Traditional, utilitarian |
| Best for | Design-forward spaces, large windows, room dividers | Commercial spaces, maximum light adjustment |
| Fabric options | Full range — solar, light filtering, blackout | Fabric, PVC, or aluminum slats |
| Maintenance | Wipe or vacuum fabric panels | Each slat dusted individually |
For most residential applications in new builds and renovations, panel track blinds deliver a significantly more refined result than vertical blinds — cleaner sight lines, better fabric options, and a contemporary profile that suits modern home design. Vertical blinds remain the practical choice in commercial and rental environments where cost and slat-level light control are the priorities.
Panel Track Styles: Compact Cassette & PVC Valance
Maxxmar panel track blinds are available in two track configurations. The track hardware is the most visible component of the installation when the panels are stacked open — choosing the right profile for the room’s aesthetic matters.
Compact Cassette
A slim extruded aluminum headrail with a minimal profile. When the panels are stacked, the track is visible but understated — a clean horizontal line at the top of the window. The compact cassette suits contemporary and minimalist interiors where the track is meant to recede rather than draw attention. Well suited to inside-mount applications where ceiling or soffit height limits the projection available for a larger cassette profile.
PVC Valance
A decorative PVC valance cap covers the track hardware, creating a finished, furnished appearance that conceals the mechanical components entirely. The PVC valance comes in a range of colour options to coordinate with the fabric panels or the room’s existing trim and hardware. Well suited to transitional and traditional interiors, and to installations where the track will be visible at eye level rather than at ceiling height.
PVC Valance — Decorative Finish
Compact Cassette — Clean Profile
Panel Track Blinds for Sliding Glass Doors & Large Windows
Panel Track Blinds for Sliding Glass Patio Doors
Panel track blinds for sliding glass doors are the most natural application for this product category. The panels travel horizontally along the track — the same direction the door itself moves — so there’s no conflict between operating the window covering and using the door. Open the panels, open the door. Close the panels, the patio door opening is fully covered with a clean fabric face.
A sliding panel blind system for a standard 96″ patio door opening typically uses three or four panels on a left-stack or right-stack track configuration, depending on which direction the door slides. The stack depth — how much wall space the stacked panels occupy — needs to be factored into the specification. ECO Glass measures and accounts for stack depth at every patio door installation to ensure the panels don’t interfere with door hardware, light switches, or adjacent walls.
For panel track blinds on sliding glass patio doors, specify a stack direction opposite to the door’s travel path — if the door slides right to open, specify a left-stack panel track. This ensures the stacked panels don’t occupy the wall space the open door needs. Also confirm the wall depth available beside the door before specifying panel count and width — narrower panels stack deeper.
Panel Track Shades for Wide Windows
Any window wider than approximately 72″ is a candidate for panel track treatment. At that width, a single roller shade becomes heavy and the cassette profile grows disproportionately large. A panel track system distributes the fabric weight across multiple lightweight panels, keeps the cassette or headrail at a manageable profile, and gives the window covering a horizontal rhythm that can be a deliberate design choice rather than a practical compromise.
For floor-to-ceiling window walls — a common feature in open-plan living areas and master bedrooms in newer construction — a ceiling-mounted panel track system with fabric panels that run the full height of the glass creates a wall-of-fabric effect when closed that no other window covering category replicates at this scale.
Panel Track Blinds as Room Dividers
Panel track systems are not limited to windows. A ceiling-mounted panel track installed across an open-plan room creates a flexible room divider that can define zones without permanent walls — separating a home office from a living area, creating a guest sleeping space in a studio, or dividing a large family room into distinct functional areas.
When the panels are stacked open, the space reads as a single unified room. When the panels are drawn across the track, distinct zones are created with a soft fabric boundary — acoustically dampening, visually defining, and fully reversible. The fabric selection matters here: a light filtering fabric maintains some visual connection between zones; a blackout fabric creates genuine visual separation.
Home Office Divider
Panel track panels drawn across a section of an open-plan living space define a work area without a permanent wall. Draw them open on weekends; close them during the work day to visually separate the office environment from the living space.
Guest Sleeping Area
In a studio apartment or multipurpose room, a ceiling-mounted panel track with room darkening panels creates a genuine sleeping alcove — blackout, private, and fully retractable when the guest is not in residence.
Dining Room Partition
A split-stack panel track between a kitchen and a dining area allows the two spaces to function as one open room for entertaining and close into defined zones for privacy or noise management.
Closet Cover
Panel track shades replace bifold or sliding closet doors with a fabric-forward alternative — lighter in operation, quieter, and available in any fabric from sheer to blackout to suit the room’s design direction.
Motorized Panel Track Blinds
Motorized panel track blinds bring automated horizontal operation to large openings — the panels open and close via remote control, smartphone app, or voice command without any manual effort. For ceiling-mounted installations where reaching the panels requires awkward overhead movement, or for very wide systems where manually sliding multiple panels is cumbersome, motorization moves from a convenience to a practical necessity.
Maxxmar motorized panel track blinds use the MaxxMotor system and integrate with MaxxLink WiFi for full smart home ecosystem compatibility — Amazon Alexa, Google Home, Apple HomeKit (Matter), Control4, Savant, Crestron, and more. Scenes can be set to open the patio door panels automatically at sunrise and close them at sunset, or group all panel track systems in the home to a single remote command.
One MaxxLink WiFi hub at $677 retail connects every motorized Maxxmar product in the home. Panel track blinds, roller shades, cellular shades, and dual shades all respond to the same app, the same voice commands, and the same automated schedules. No separate systems, no competing apps — one hub controls everything.
Panel Track Fabric Options
Maxxmar panel track blinds are available across a broad fabric range — the same fabric library available for roller shades applies to panel track panels. This matters because it means every opacity level, from open-weave solar screen to full blackout, is available in a panel track format. The fabric choice drives the light control character of the system.
Solar Screen Fabrics
Open-weave solar fabrics in 3%, 5%, and 10% openness factors — reduce glare and UV transmission while maintaining outward visibility through the panels. The right choice for living rooms and dining rooms with south or west exposure where view preservation is a priority.
Light Filtering Fabrics
Tightly woven fabrics that diffuse natural light without a view through the panel. The room stays bright and warm; the fabric face presents a uniform appearance from inside and outside. Suited to bedrooms and living spaces where privacy during daylight hours matters.
Blackout Panel Track Blinds
Room darkening and blackout fabrics for complete privacy and light control. When panels are closed across a window or room divider application, blackout fabric creates genuine visual separation. Combined with a full-coverage stack that extends beyond the window frame, near-total light elimination is achievable.
Fabric Consistency
All panels in a single panel track system must be ordered from the same fabric and dye lot. Order all panels simultaneously — Maxxmar does not guarantee colour matching across separate orders. ECO Glass places every panel track order as a single complete specification.
Fabric Panel Face Detail
Panels Closed — Full Coverage
Panels Stacked — Clear Opening
Custom Panel Track Blinds, Installed Precisely
A panel track system that’s even slightly out of level causes the panels to drift toward one end of the track on their own. Panels that are too wide bind against each other as they stack. A stack direction specified incorrectly blocks the door it was supposed to leave clear. Panel track installations have more variables than most window covering categories — and every one of them matters to the finished result.
ECO Glass Windows And Doors measures every opening in person, specifies the right panel count, width, stack direction, and track configuration for the application, orders directly from Maxxmar as an authorized dealer, and installs with the precision a panel track system requires. We serve homeowners and builders across Maple, Aurora, Newmarket, Barrie, Vaughan, Richmond Hill, and the broader Greater Toronto Area. Every installation is backed by Maxxmar’s Lifetime Limited Warranty.
Panel Track Installation Across the GTA & Beyond
ECO Glass Windows And Doors is based in Maple, Ontario and serves homeowners, builders, and renovators across the Greater Toronto Area and surrounding regions. Every city below is part of our regular service territory.
Don’t see your city? Call 647-272-7219 — we may still serve your area.
Panel Track Blinds FAQ
Get Panel Track Blinds Measured & Installed Right
Free in-home consultation, expert specification, and professional installation — serving the GTA and surrounding communities.
